Olefini - Air Curtains

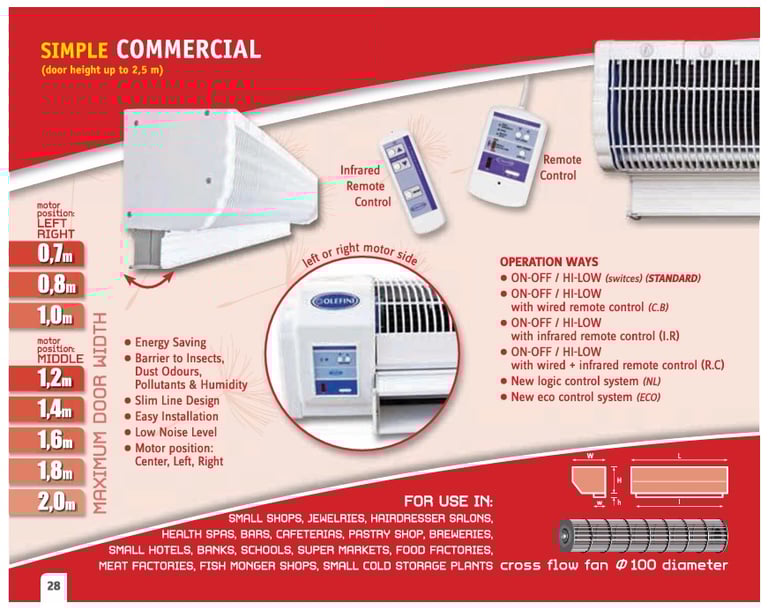

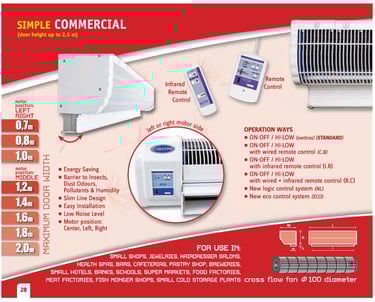

COMMERCIAL & GENERAL PURPOSE SERIES

• Housing made from GI steel with molded plastic intake grilles

• Suitable for horizontal installation over a wall / surface

• Can also be suspended from ceiling

• Various sizes to choose from – 1.0, 1.2, 1.4, 1.6, 1.8 & 2.0 m

• Suitable for maximum throw from 2.5 – 4.0 m

• Can be interlocked with door for automatic operation

• BMS integration available on request

• Available with electrical heater or hot-water coil or CHW coil, on demand

• Not suitable for mounting as recessed/concealed in false ceiling

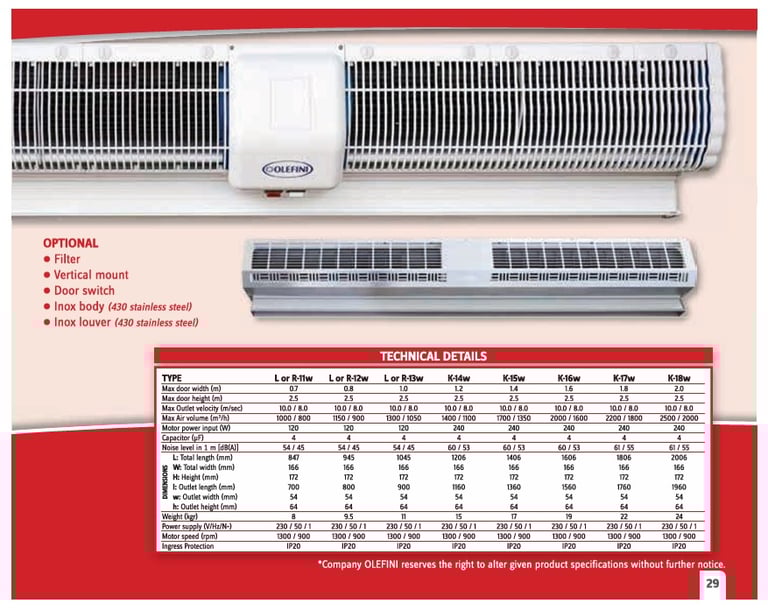

Commercial Air Curtain Units (Usable Height up to ~2.5 m)

• OLEFINI Air Curtain K‑17 With a Maximum Height Of 2.5 Meter – Designed for commercial doors up to 2.5 m high, this model ensures effective air separation in busy entrances, helping to control indoor climate and block dust, insects, and external pollutants.

• OLEFINI Air Curtain KEH‑18 , 2 meter – A 2 m wide unit suitable for many commercial doors. Many Olefini commercial units of this class are engineered to cover entrances with heights up to ~2.5 m, offering strong airflow and energy-efficient performance.

• OLEFINI X‑20 Air Curtain 2 Meter, Made In Greece – Another commercial solution commonly installed at standard entrances; these units typically perform well up to about 2.5 m high.

• Other 2 m models like OLEFINI K‑28 Air Curtain 2 Meter, Made In Grees, OLEFINI K‑38 W Air Curtain 2 Meter, Made In Greece, and OLEFINI RS‑38 Air Curtain 2 Meter, Made In Greece can also be specified for similar doorway heights depending on configuration.

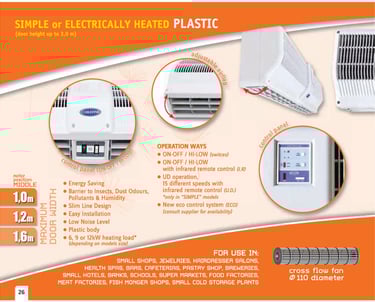

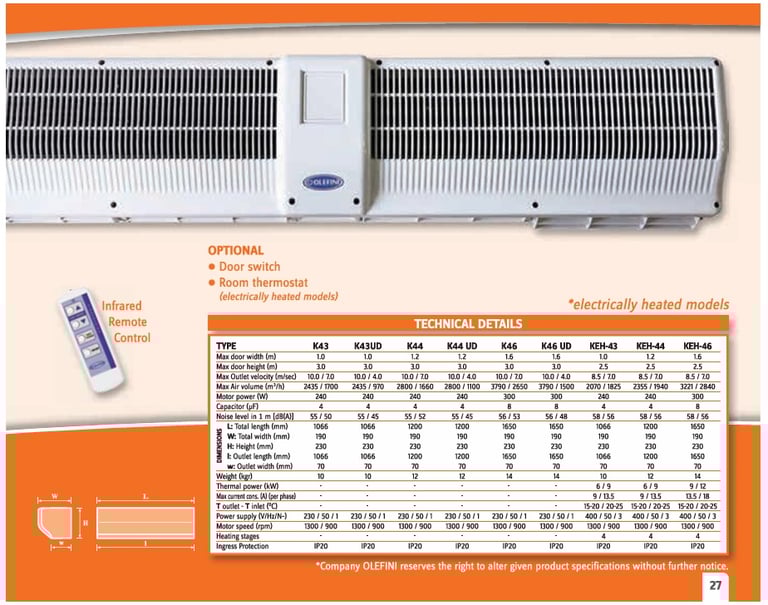

PLASTIC SERIES

• Housing made from molded plastic

• Low noise air curtains

• Suitable for horizontal installation over a wall / surface

• Available in 3 different sizes – 1.0, 1.2, & 1.6 m

• Suitable for maximum throw of 2.5 – 3.0 m

• Can be interlocked with door for automatic operation

• Available with electrical heater, on demand

Key Features of Olefini Air Curtains

What they are: Air curtains are fan-powered devices installed above door openings that produce a directed stream of air. This “invisible air barrier” helps separate indoor and outdoor spaces without a physical door, reducing heat/cold loss and preventing insects, dust and pollutants from entering while doors are open.

Typical uses:

• Retail entrances, supermarkets, hotel lobbies

• Restaurants and cafés

• Warehouses and industrial buildings

• Hospitals and public buildings

Construction and performance (varies by model):

• Plastic or metal housing: Many Olefini units use plastic shells for lightweight economy variants; others use metal for durability.

• Airflow & barrier: Units provide airflow rates typically from ~1,400 to ~3,800 m³/h depending on model and width.

• Coverage: Designed for door heights ~2.5–3.0 m with widths matched to model lengths (e.g., 1.0-2.0 m).

• Energy & climate: Helps maintain indoor temperature by reducing uncontrolled exchange with outside air.
